Soarer Dex

ROLLER TURN

Table ModuleCradle Module

  • Summary
  • Dimension, CAD data
  • Support turn
  • Rotary joint
  • Support hanger

Dimension, CAD data

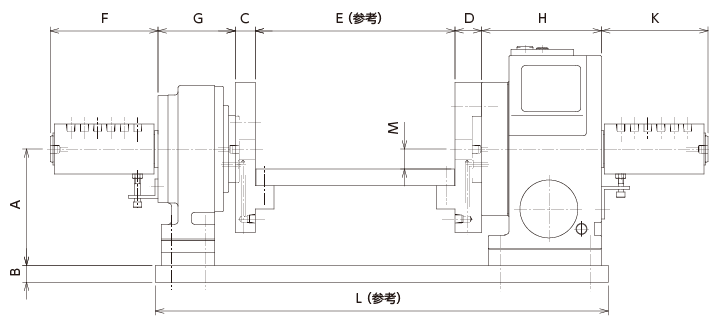

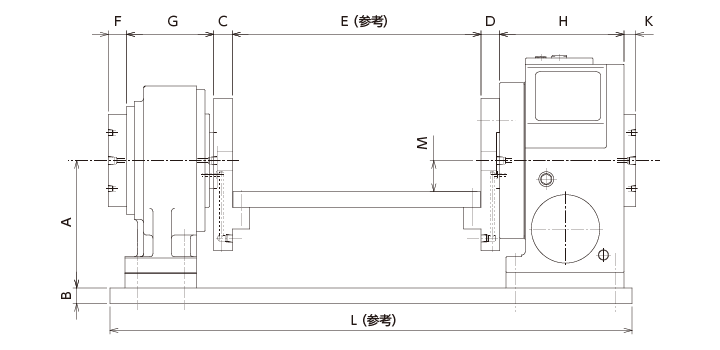

Cradle module Dimension, CAD data
External

External

  A B C D E F G H K L M CAD
Download
CU180 160 25 30 40 300 162 116 155 162 670 30 PDFDXF
CU200 175 25 30 40 300 162 116 180 160 680 30 PDFDXF
CU250 205 25 30 30 400 162 140 200 161 840 50 PDFDXF
Built in

Built in

  A B C D E F G H K L M CAD
Download
CU250IN 205 25 30 30 400 30 140 200 19 840 50 PDFDXF
