Dimension

You can see the appearance and dimension of SoarerDex.

SoarerDex

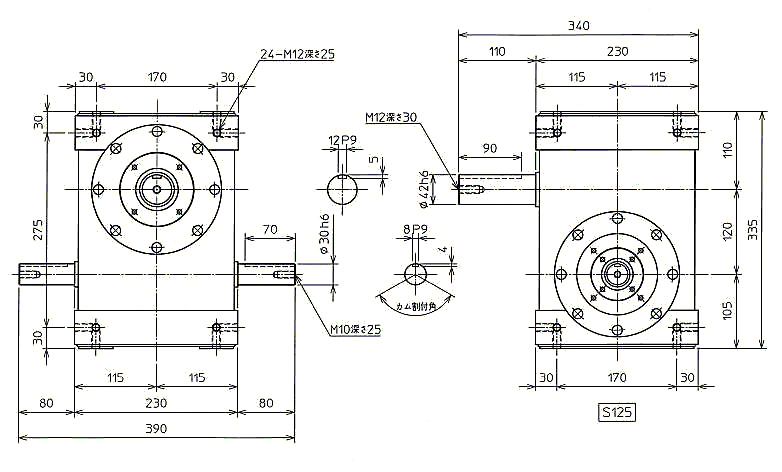

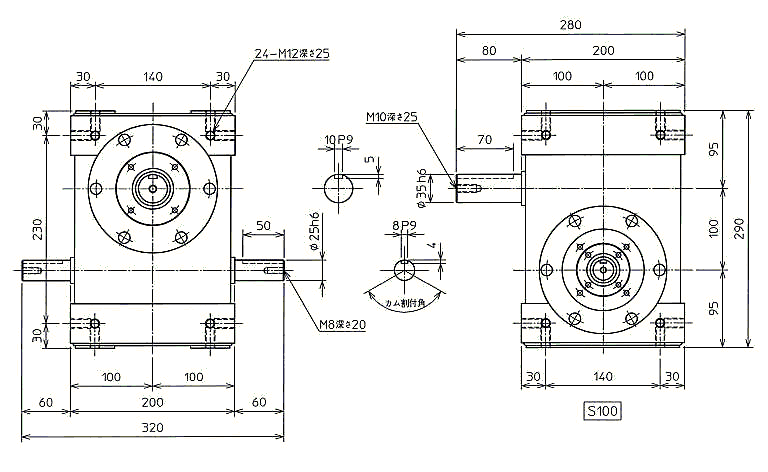

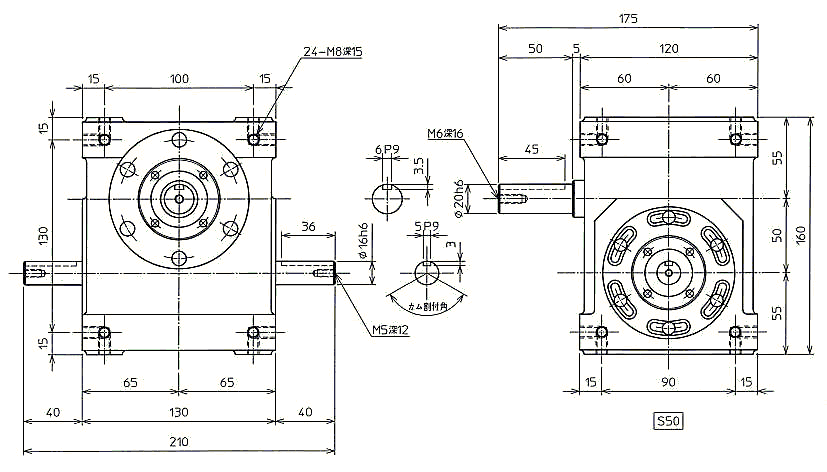

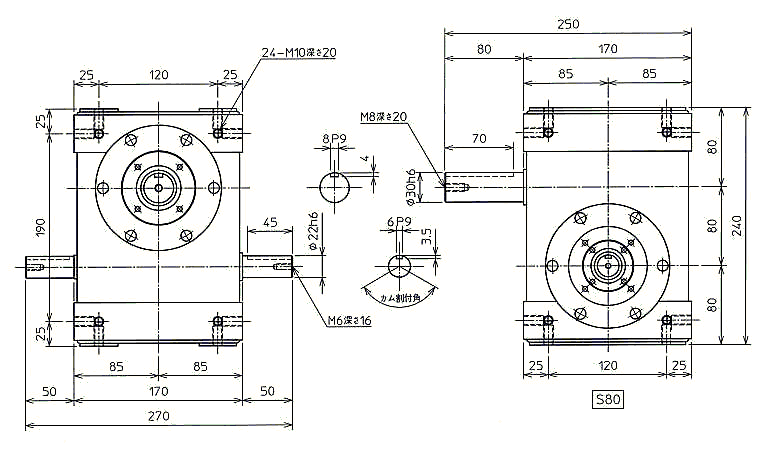

Shaft type

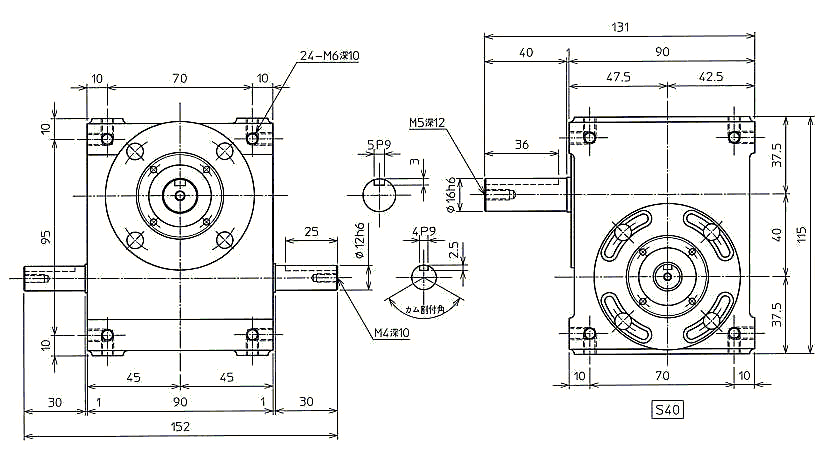

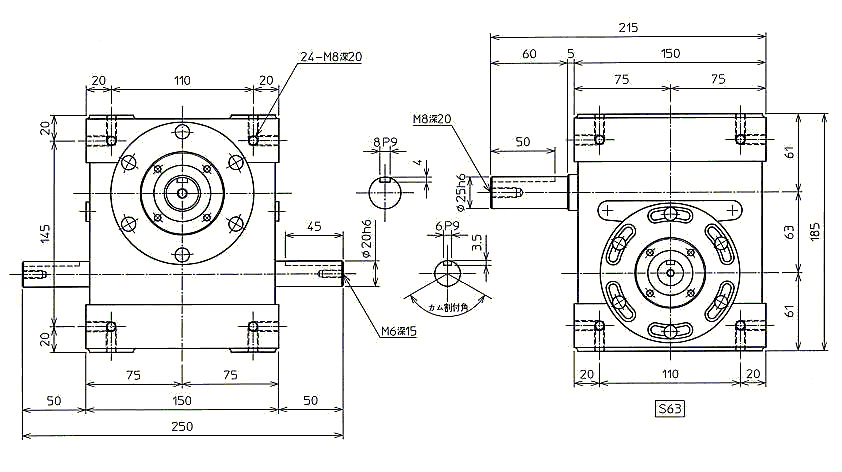

S40  S50  S63  S80  S100  S125

Small Flange type

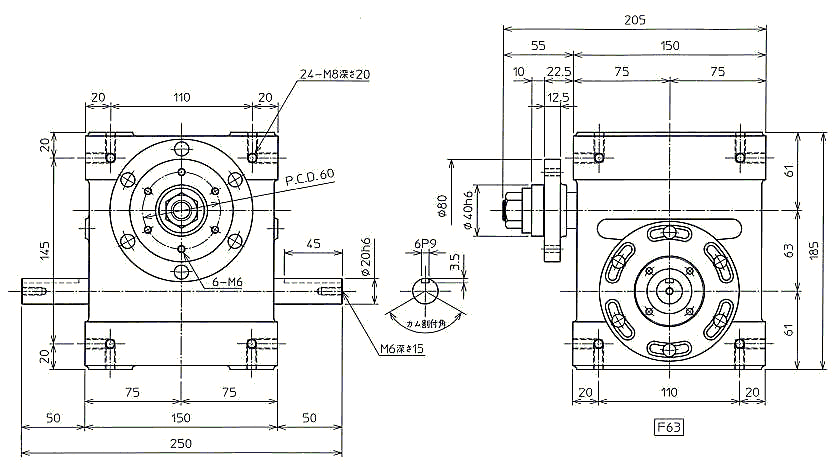

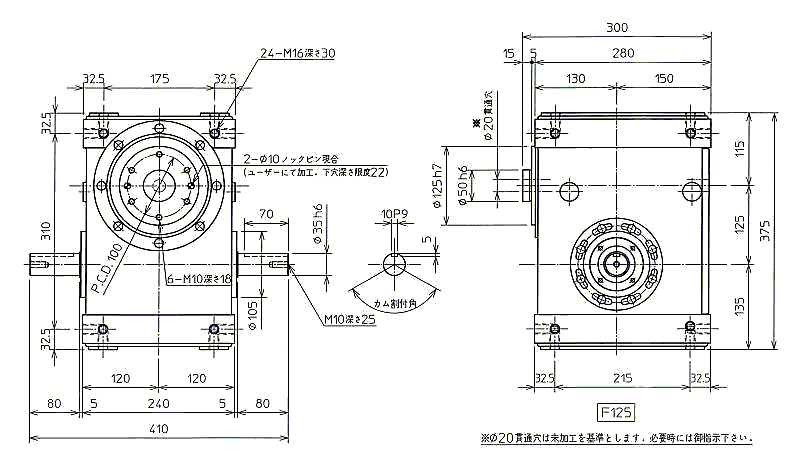

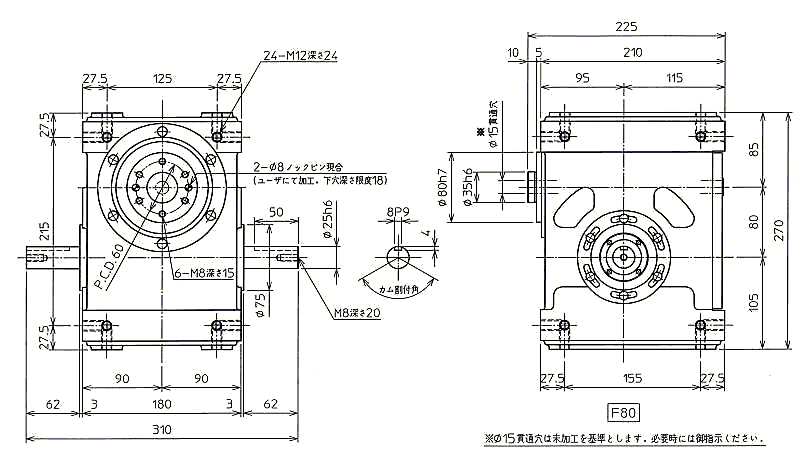

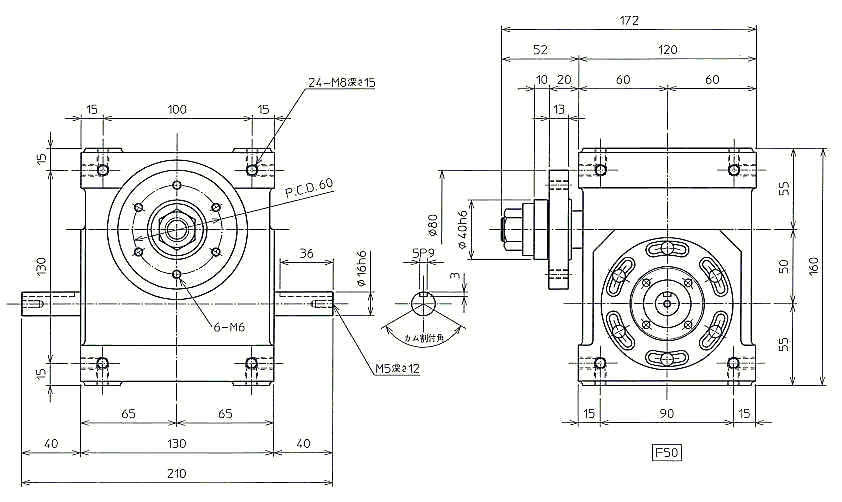

F50  F63

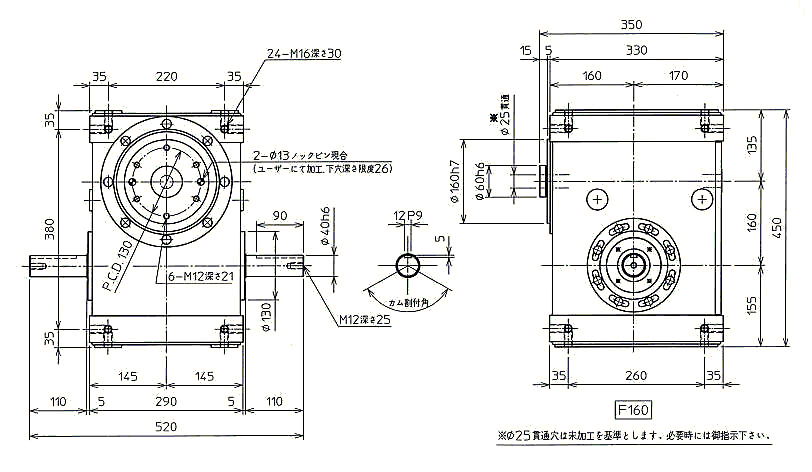

Flange type

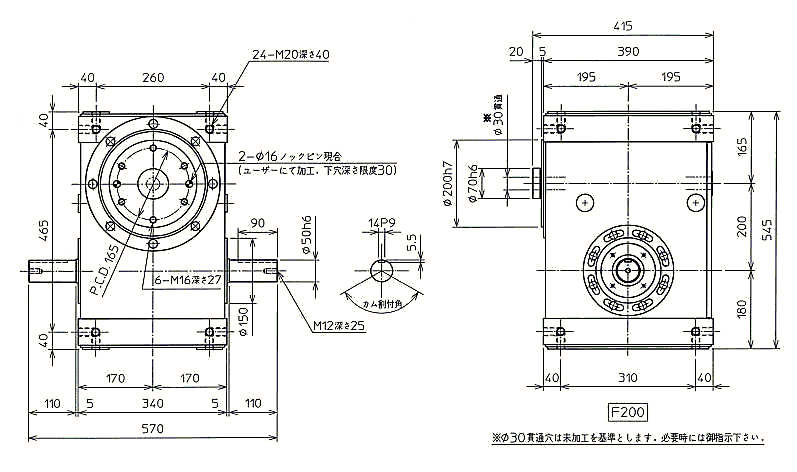

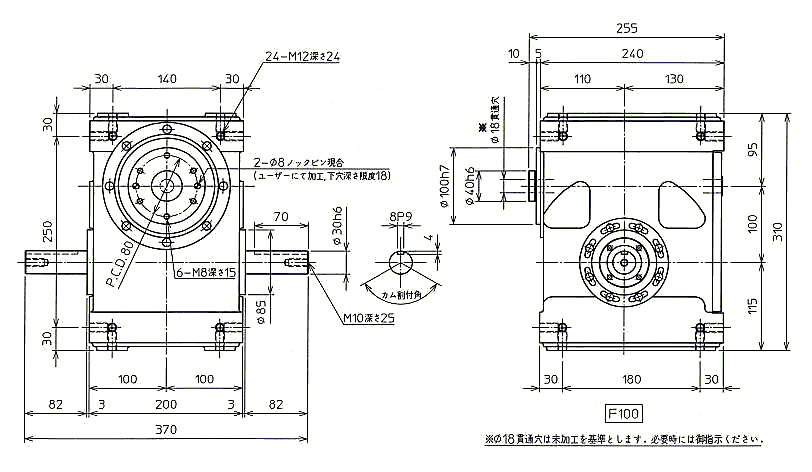

F80  F100  F125  F160  F200

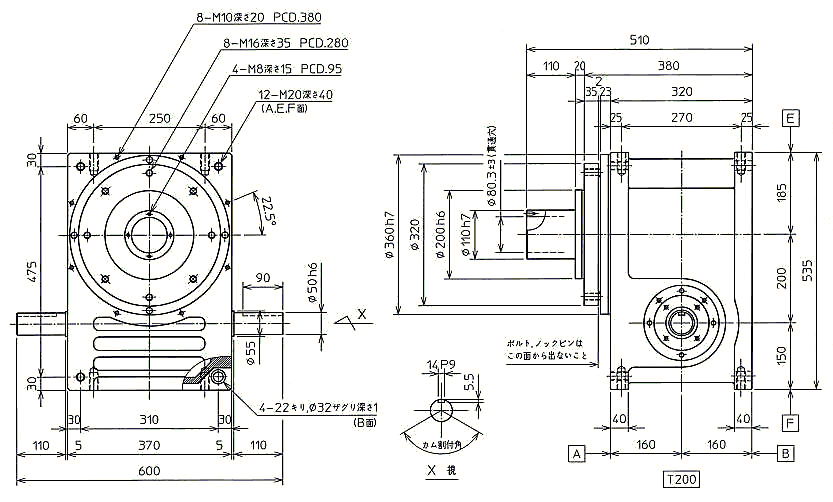

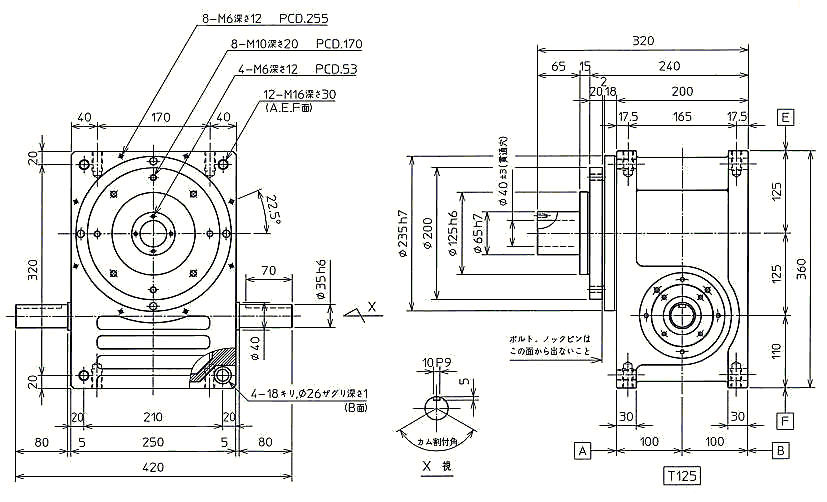

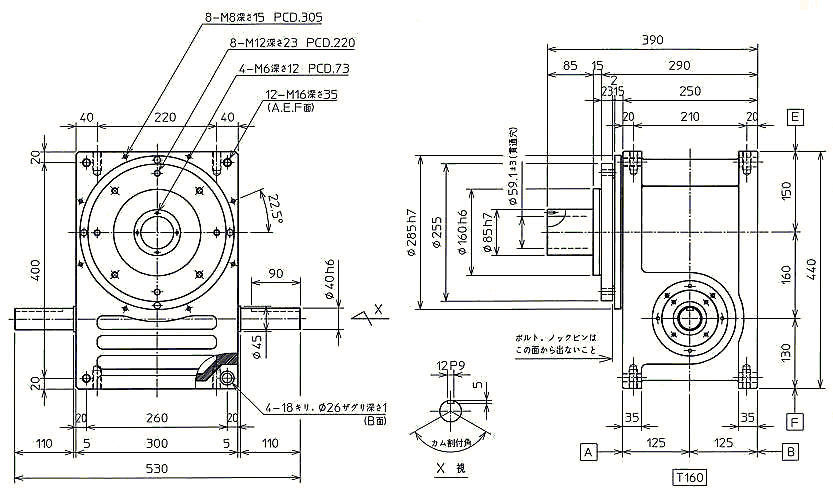

Table type

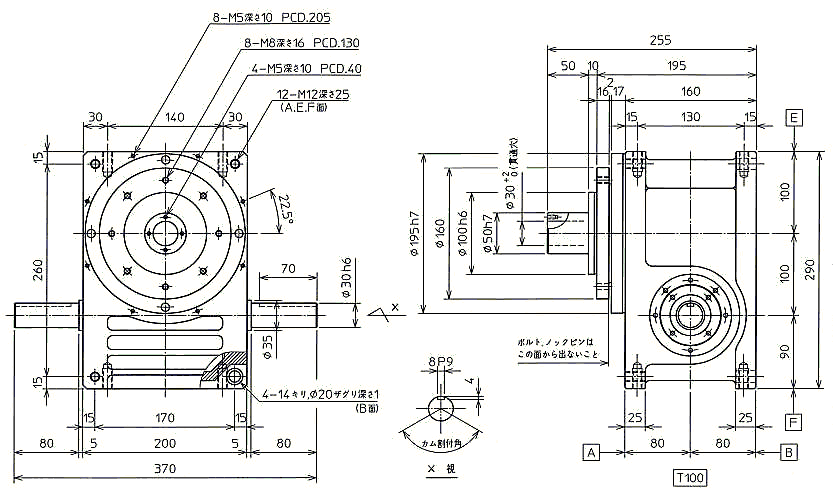

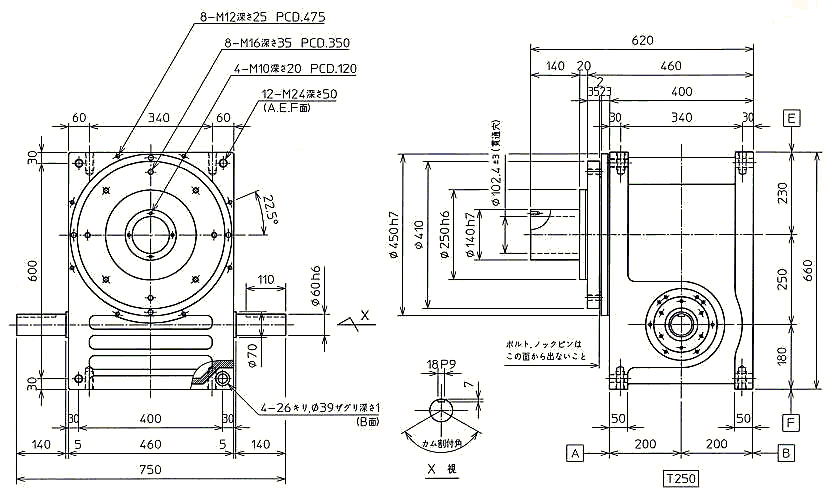

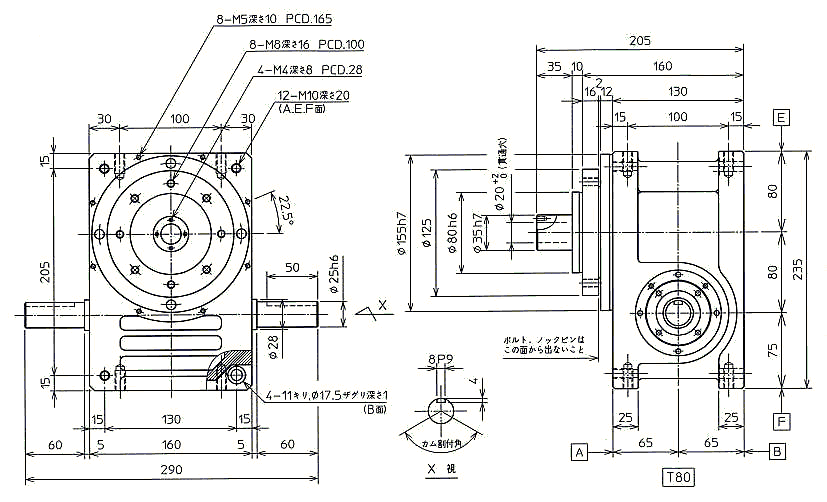

T80  T100  T125  T160  T200  T250

SoarerDex Package
Small Flange type

with a reducer and a clutch-brake

SDP-63

with a reducer

SDR-63

Flange type

with a reducer and a clutch-brake

SDP-80  SDP-100  SDP-125  SDP-160  SDP-200

with a reducer

SDR-80  SDR-100  SDR-125  SDR-160  SDR-200

Table type

with a reducer and a clutch-brake

SDP-T80  SDP-T100  SDP-T125  SDP-T160  SDP-T200  SDP-T250

with a reducer

SDR-T80  SDR-T100  SDR-T125  SDR-T160  SDR-T200  SDR-T250
