Support turn

Support turn

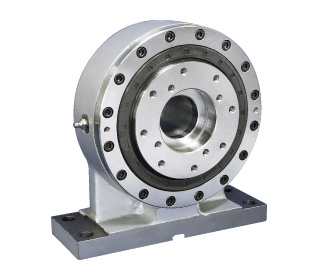

Support turn is an accurate supporting spindle adopting a cross roller bearing. Using this product with Rollerturn, you can drive a cradle rapidly and precisely.

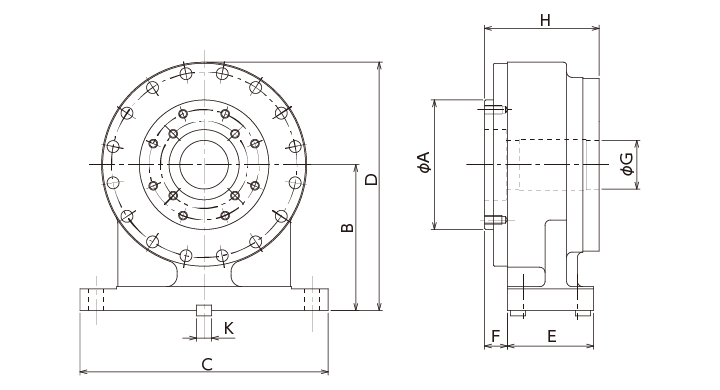

TST180 / 200 / 250

TST180 / 200 / 250

  A B C D E F G H K
TST180 Ø120 135 230 230 80 21 Ø45 106 14
TST200 Ø120 150 230 230 80 21 Ø45 106 14
TST250 Ø150 180 280 300 115 21 Ø65 133 18
