Technical Data

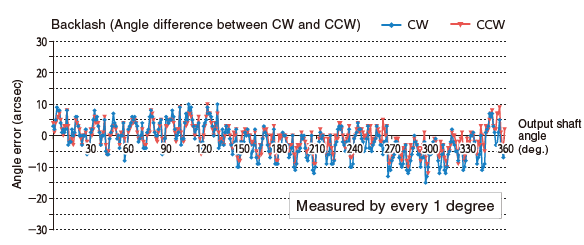

Indexing Accuracy

Indexing Accuracy

Indexing Accuracy

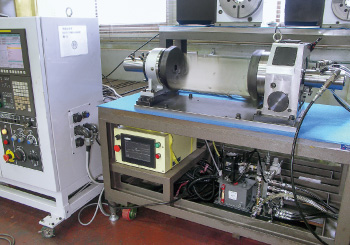

Load endurance test

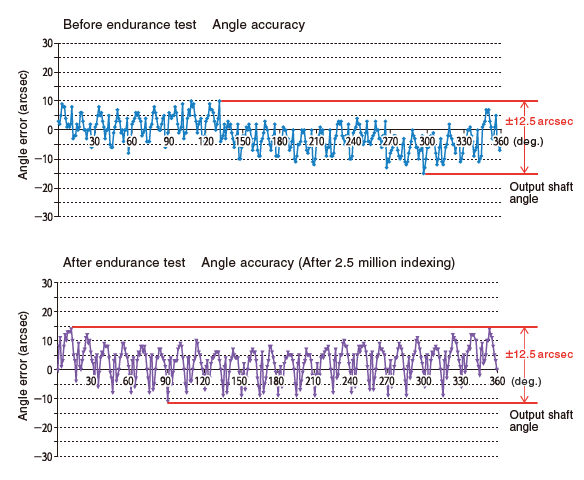

Indexing Accuracy before / after an endurance test

Load endurance test - Indexing Accuracy before / after an endurance test

Load endurance test - Indexing Accuracy before / after an endurance test

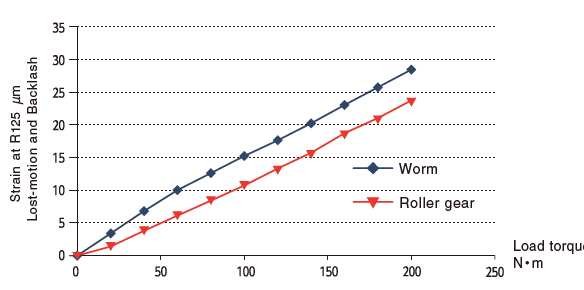

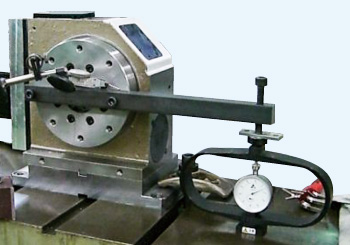

Rigidity

Rigidity

Rigidity

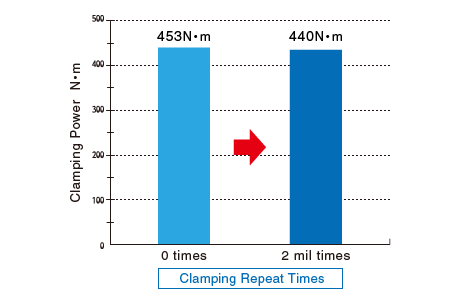

Clamping Torque Endurance test

Clamping Torque Endurance test

Clamping Torque Endurance test

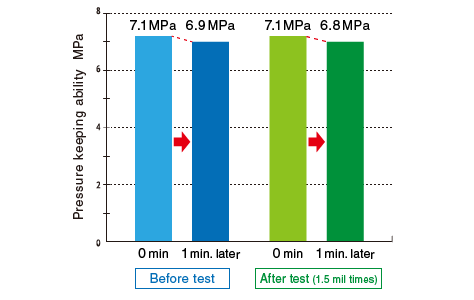

Rotary joint Seal Endurance test

Rotary joint Seal Endurance test

Rotary joint Seal Endurance test
